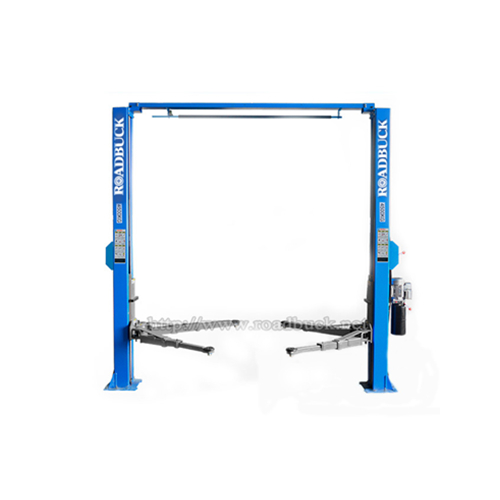

Two Post Car Lift

Capacity: 4.0T

Height: 3900mm

Inner Width: 2860mm

Total Width: 3450mm

Lifting Height:1700mm

Motor power:380V / 220V 2.2kw

Descending/Rise Time:30s/60s Motor

Total Steel block,:square pipe bracket

  • Details

RoadBuck two post car lift

1/ 2/ 4 post & scissor car lift factory professional for 15years

ISO CE 6T static test / 4.6T dynamic test

HD Picture

2post

Feature

  • Oil cylinder parts made by automatic high rotation speed CNC lathe ensure the excellent finish and concentricity
  • Japanese oil sealing elements, oil pipe explosion protective device, overload protection, international brand oil pipe
  • Direct drive twin cylinders, with safety steel wire as synchronization
  • Polymer wear-resistance slider
  • Single side safety control, arm locks with tooth type ratchet, multi-safety device, more reliable
  • Gate type, for operation more easy, no obstruction onto the floor
  • Roof protection safety device, automatic arm lock by built in ratchet tooth
  • Shot blasting and high temperature baking powder coated surface finish
Model
SHL-2-240L
Optional
3 stage lower telescopic arm
Lift Capacity
4.0T
Power of motor
2.2KW
Min height(mm)
85/105MM
Power supply
220V/380V
Car max lifting height(mm)
1870
Height of the post(mm)
3900
Rise time(appro.)
50s
Inner Width between posts(mm)
2860
Drop time(appro.)
30s
Total width
3420

Details









Process



Inquiry Now

Product Name:Two Post Car Lift
